REAN RC3MF XLR F-MAIL PIN

REAN RC3MF XLR F-MAIL PIN

SKU: 01412000026

Excluding VAT

Availability:

متوفر في المخزون

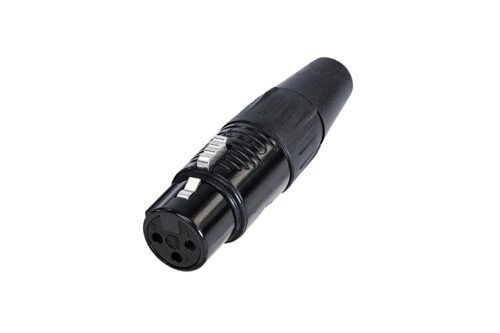

REAN’s RC3F-BAG is a 3-pin XLR female cable connector with black-plated housing and silver-plated contacts.

1.500 OMR

متوفر في المخزون

  • Electrical
    • Insulation Resistance: > 1.5 GΩ
    • Contact Resistance: ≤ 5 mΩ
    • Rated Current: 10 A
  • Mechanical
    • Lifetime: >1000 Mating Cycles
    • Insertion Force: ≤ 30 N
    • Withdrawal Force: ≤ 20 N
    • Cable O.D.: 4 – 7 mm
    • Wiresize: 1.5 mm²
    • Wiresize: 16 AWG
  • Material
    • Plastic Body: PA6+30%GF UL94-HB
    • Jack: Bronze
    • Ground Contact: Steel
    • Rubber Ring: Rubber
    • Button: Zinc
    • Housing: Zinc
    • Chuck: POM
    • Push Ring: POM
    • Bushing: PA6+30%GF
    • Boot: PVC
    • Jack: Silver Plating
    • Ground Contact: Tin
    • Button: Nickel Plating
    • Housing: Black Plating
رمز المنتج: 01412000026 التصنيف:
